3M™ Diamond Phono Point Tool P0560S2, 1/8 in x 1 in shank, 1 per case

SKU: 7010481727

3M™ Diamond Phono Point Tool P0560S2, 1/8 in x 1 in shank, 1 per case

SKU: 7010481727
$24.54 / Each
Add $199.00 worth of items to your cart to qualify for free shipping

Sold By: Each
QTY:
SHIPPING DIMENSIONS Height: 0.13 Inches Width: 0.13 Inches Length: 1.00 Inches Weight: 0 Lb(s) 0 Oz

Product Benefits

  • High quality, sharp diamonds
  • For small diameter fine grit grinding wheels

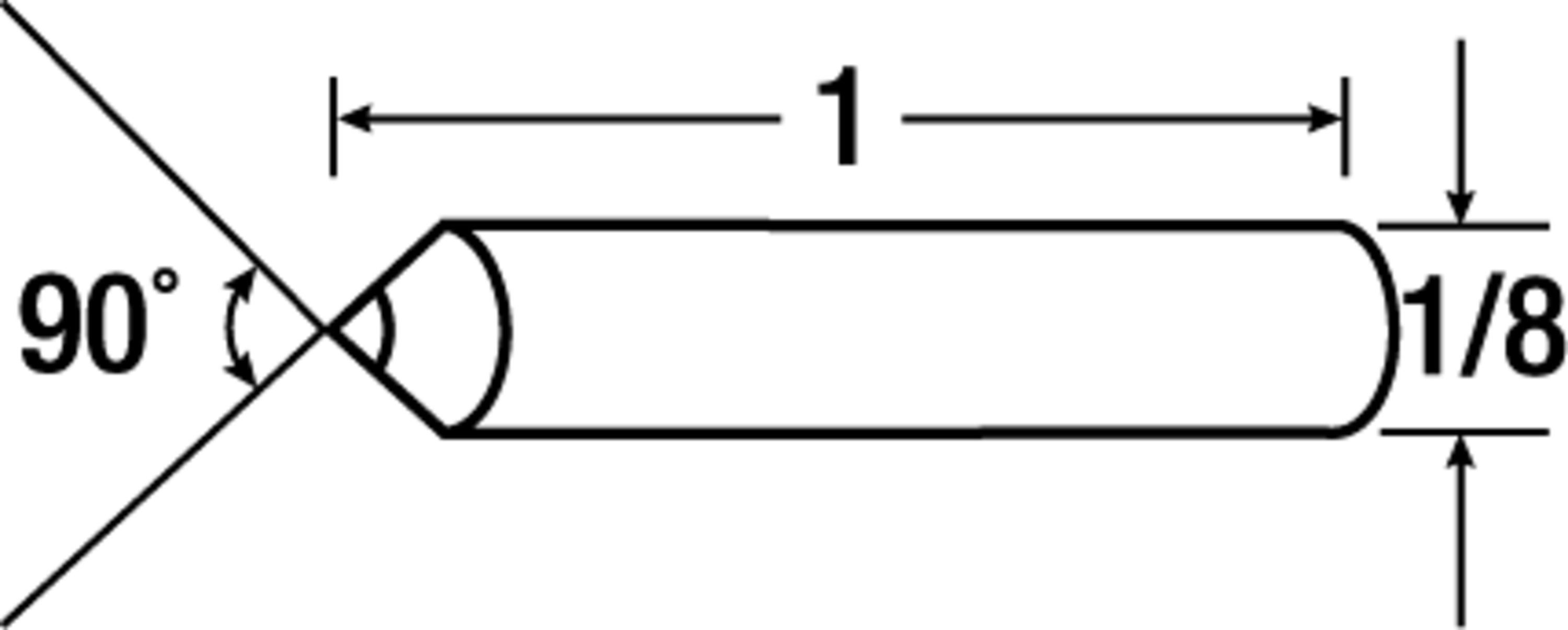

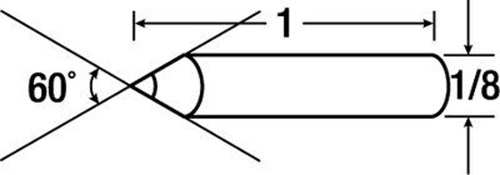

  • The phono point tool is used for internal radii dressing with to a 60, 75 or 90 degree angle
  • Concave and convex dressing
  • 1/8 x -1-inch shank

More Product Details

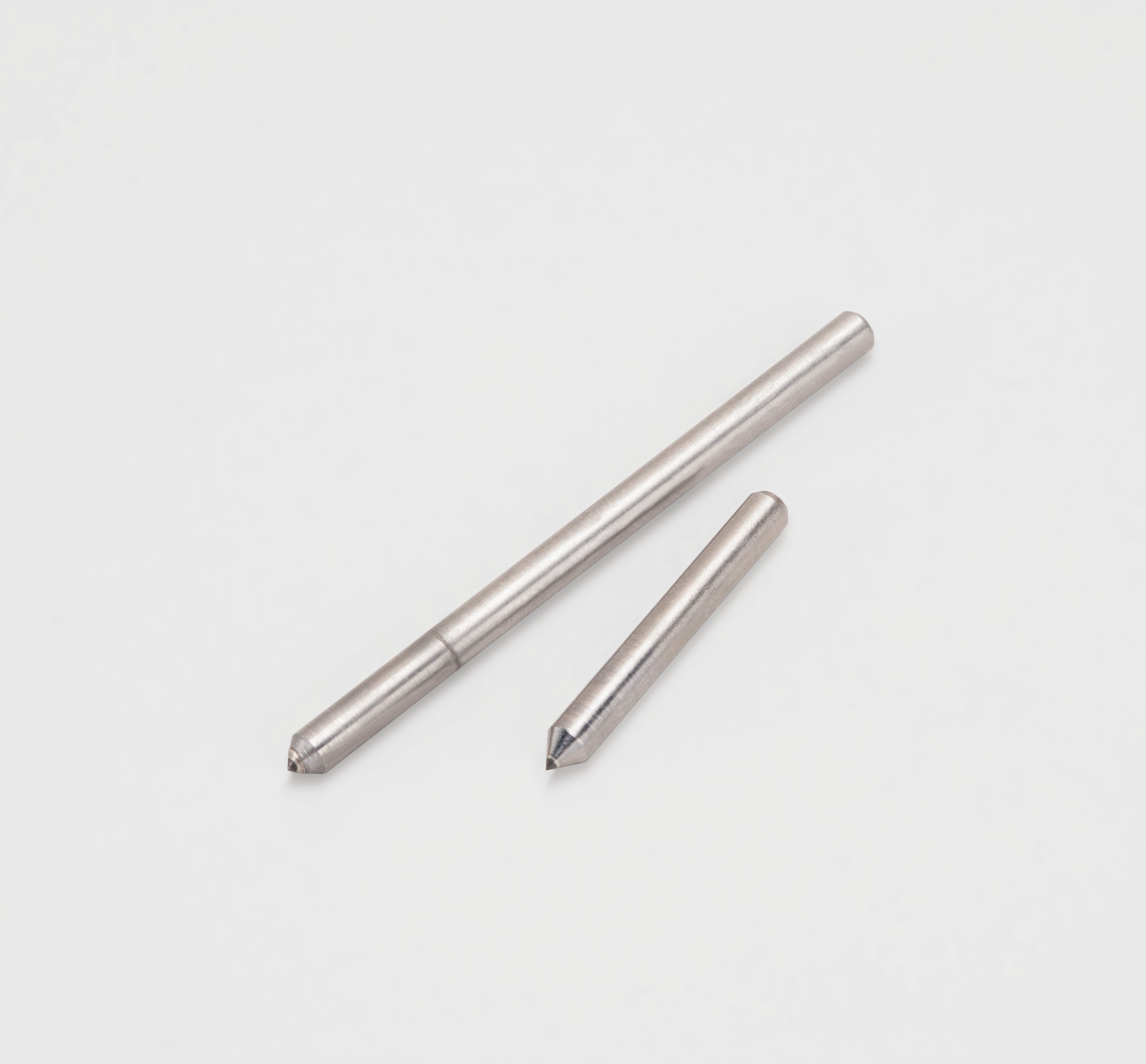

For small diameter, fine grit grinding wheels, the 3M™ Diamond Phono Point Tool is engineered to dress with precision their internal radii and more intricate forms.
Sharp, sturdy diamond tip for internal radii dressing applications

For small diameter, fine grit grinding wheels, the 3M™ Diamond Phono Point Tool is engineered to dress with precision their internal radii and more intricate forms. This phono point tool is manufactured using the finest quality diamonds and durable steel for consistent cutting, life and quality. This tool features a 1/8 x -1-inch shank and diamond at 60, 75 or 90 degree angles.

Truing and Dressing Your Diamond or CBN Wheels
Cost effective use of diamond and CBN wheels requires truing and dressing, two distinct and necessary functions

  • Truing restores the shape of the diamond or CBN wheel.
  • Dressing prepares the wheel for aggressive action. This function is necessary after a wheel is trued.
This phono point tool is manufactured using the finest quality diamonds and durable steel for consistent cutting, life and quality.

Truing generally leaves the grinding surface of a wheel smooth and unable to remove material from a workpiece effectively.

Dressing removes some of the bond material from the surface of a trued wheel to expose the diamond crystals and make the wheel grind efficiently. Dressing also removes tiny pieces of material from the pores of the wheel face to prevent loading, which can cause vibration and leave burn marks on the workpiece.

Learn more about superabrasive products (PDF, 2 Mb)

RELATED PRODUCTS

3M™ Roto Peen Almen Strip Holder, 2 in x 7 in x 1 in, 1 per case
SKU: 7000046312
$327.42
Free Shipping

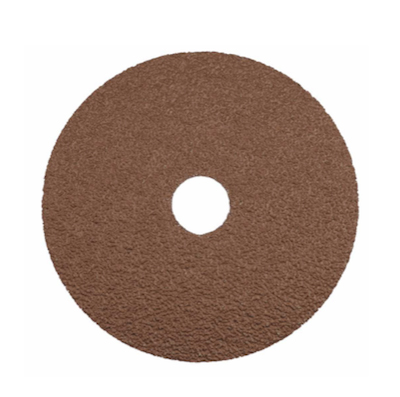

4-1/2 (114 mm) Dia. x 7/8" CH 60 Grit A/O DynaCut Fiber Disc
