Bonds and conforms to both irregular and flat surfaces

Thick and Versatile

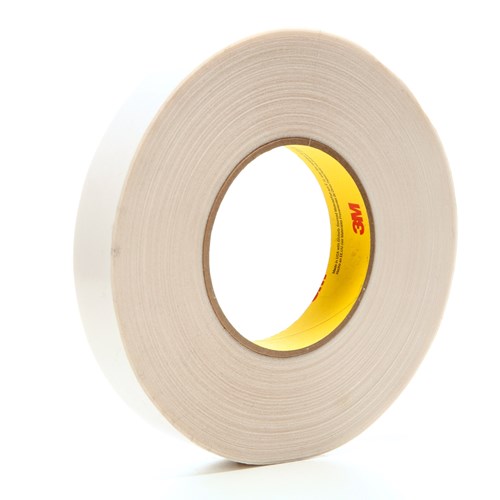

3M™ Double Coated Tape 9741 is a 6.5 mil double-sided tape utilizing a 0.5 mil hand-tearable polyester film carrier lined on both sides with acrylic adhesive. It has a high coat weight and adheres well to low surface energy substrates. This product provides excellent UV and heat resistance, and can perform under a wide temperature range (-40°F/-40°C to 200°F/93°C). Once bonded, this tape provides excellent peel and shear strength - making it ideal for rigorous splicing applications and bonding plastics to metals. 3M™ Double Coated Tape 9741 is mounted on a 55# glassine backing to enable ease of deployment. Notably, this product is offered in two colors — clear and red. The red version can be used for visible splicing applications.

Recommended Applications

• High speed splicing applications
• Applications where adhesion to low surface energy substrates is needed
• Bonding decorative trim, plastics and metal profile extrusions
• Attachment to irregular surfaces
• Seaming of vinyl banners
• Universal all-purpose bonding applications common to double coated tapes

Aggressive Adhesion
3M™ Double Coated Tape 9741 is coated on both sides with an aggressive, pressure sensitive acrylic adhesive. This bonding agent provides an ultra-high peel acrylic adhesive system that bonds well to most substrates, including low surface energy plastics. It provides superior bonding and conformability to irregular as well as flat surfaces. It will withstand a wide range of temperatures and applications.

Red option allows better splicing visibility

What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in web processing, construction, fabrication, arts and hobby industries, among others.

Learn more about 3M™ Splicing Tapes (PDF, 747.28 Kb)
