A High-Performance Bond for Nearly Any Substrate

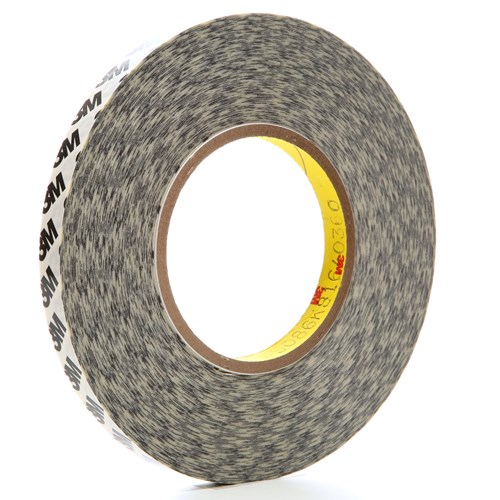

Thicker and stickier than traditional tapes, 3M™ High Performance Double Coated Tape 9086 (PDF, 1.32 Mb) is suitable for a wide range of materials including paint, stainless steel, glass, foams and a variety of plastics. The adhesive is applied at a thick 3.5 mils on each side of the carrier for good wet-out regardless of whether the surface is smooth, rough or textured. The 0.5 mil tissue carrier conforms well to irregular surfaces, and can be torn by hand for easy handling and application. This tape features a white 3.2 mil glassine paper liner which provides easy, efficient release during tape application.

Recommended Applications

• Zero-speed and general splicing
• POP displays
• Fabrics
• Blind manufacturing
• Print finishing

Learn more about 3M tapes, labeling materials and graphic solutions (PDF, 26.89 Mb)

3M™ Adhesive 375 Family Provides High Initial Tack
3M™ High Performance Double Coated Tape 9086 features 3M™ Adhesive 375, formulated for very high initial adhesion and excellent peel and shear performance. This high-performance adhesive has been tested for high peel and shear performance on substrates including stainless steel, polycarbonate, glass, HDPE, ABS and high pressure laminate.

Understanding Double Coated Tape
Double coated tapes are composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. Due to their dimensional stability, these double sided tapes can be applied by hand or with a dispenser with minimal stretch or deformation. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Double coated tapes are used in a broad range of industrial applications.

Bringing Better Ideas to the Surface through Science
3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, these technologies help customers like you deliver competitive products to the market faster and more efficiently.

Learn more about 3M Industrial Adhesives and Tapes (PDF, 45.87 Mb)
