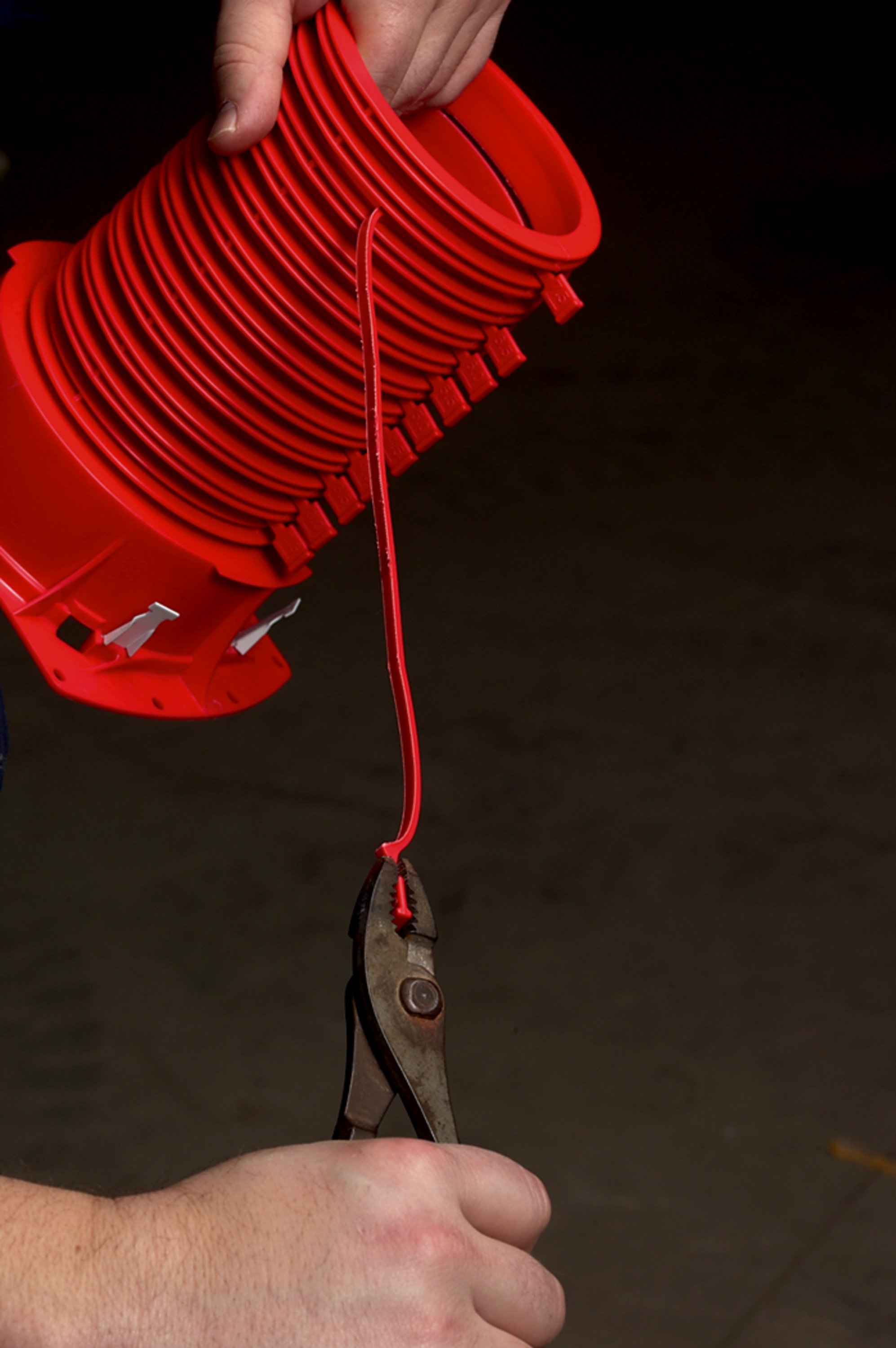

Easily adjust the height with only a pliers

Simply a Better Way to Firestop

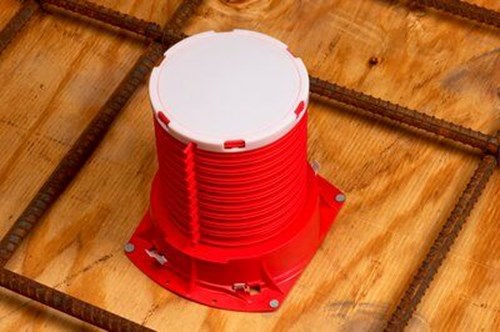

Firestopping through concrete used to mean three things: pouring the concrete, core drilling holes, and firestopping later. 3M™ Fire Barrier Cast-In Devices (PDF, 560 Kb) eliminate the time and expense of firestopping metallic penetrants using extra materials such as pipe devices, strips and caulk. This allows for secure, permanent firestop installation before concrete is poured. A series of built-in tear strips makes for fast, easy height adjustment: using only a pliers, installers can quickly adjust the height in 1/2 inch increments from its maximum 8 inches (203.2 mm) to as low as 2-1/2 inches (57.2 mm). The device secures easily to floor decking, and its one-piece design withstands the everyday impact and wear of the construction site. Its black cap, easily visible after pour, signifies it as a pass-through device for metallic penetrants.

Recommended Applications

• Firestopping of metal pipes — copper, steel, iron, flexible gas, cable bundles
• For concrete thicknesses from 2-1/2 (203.2 mm) inches to 8 inches (57.2 mm) or higher in conjunction with 3M™ Fire Barrier Cast-In Devices Height Adaptor
• In conjunction with 3M™ Fire Barrier Cast-In Device Metal Deck Adaptor for attaching to fluted decks

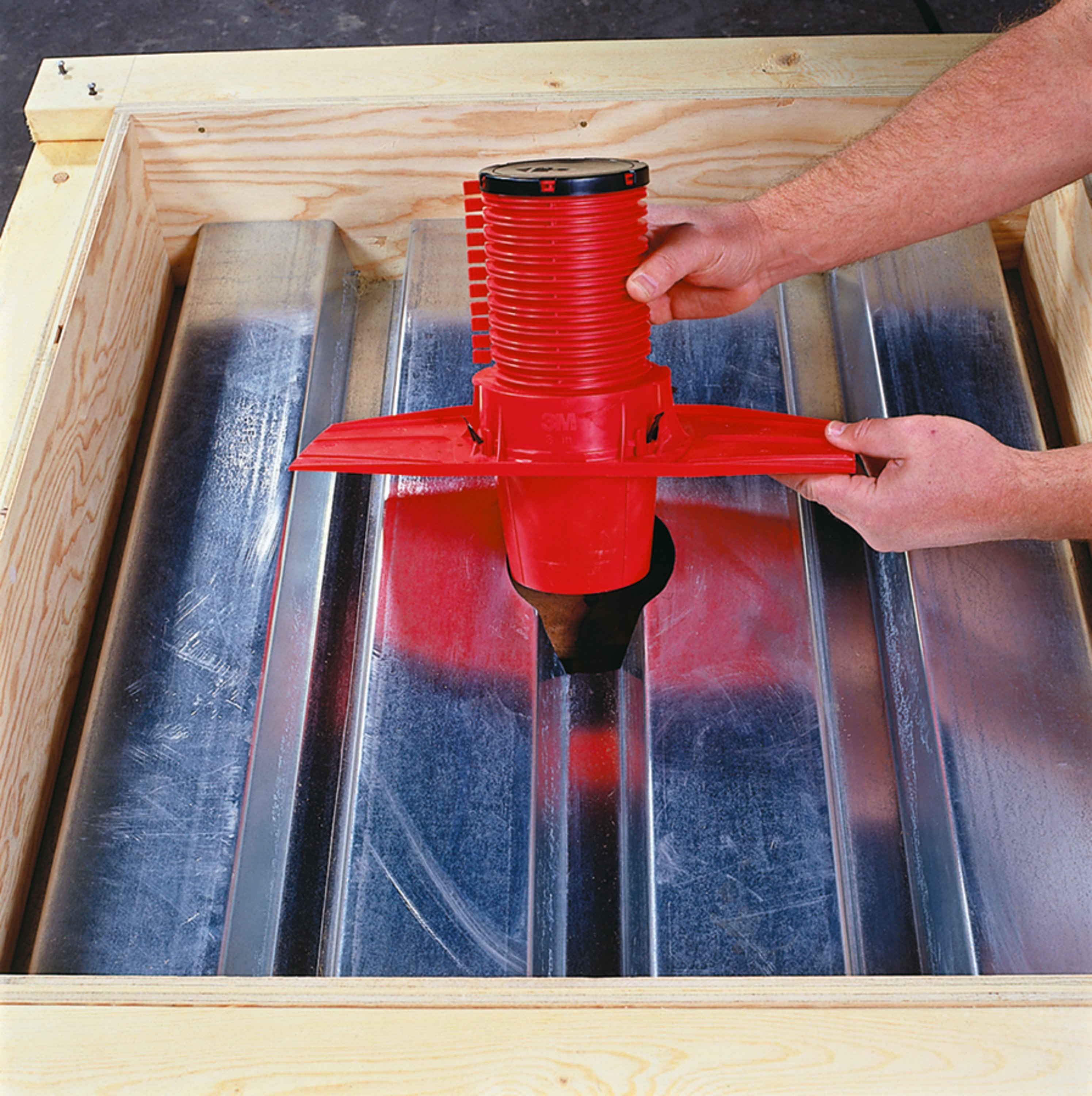

Use in conjunction with 3M™ Fire Barrier Cast-In Device Metal Deck Adaptor for attaching to fluted decks

Fully Tested and Approved
3M™ Fire Barrier Cast-In Devices for Metal Pipes are firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479). They are UL Classified for 2- and 3-hour fire (F) rating, and 1- and 3-hour temperature (T) rating. They also meet UL Water Leakage Test, W Rating - Class 1 requirements for systems tested and listed in accordance with ANSI/UL 1479 (see system details).

Reliable and Affordable Fire Protection
Effective and easy to install, 3M™ Fire Barrier Cast-In Devices for Metal Pipes are part of 3M's family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products.
