3M™ Fire Barrier Cast-In Device 6PCID for Plastic Pipes, 6 in, 2 per case

SKU: 7100138818

3M™ Fire Barrier Cast-In Device 6PCID for Plastic Pipes, 6 in, 2 per case

SKU: 7100138818

$82.81 / Each

Add $199.00 worth of items to your cart to qualify for free shipping

Minimum Order Quantity: 2 Each

QTY:

SHIPPING DIMENSIONS Height: 8.90 Inches Width: 12.60 Inches Length: 20.30 Inches Weight: 8 Lb(s) 12 Oz

Technical Specifications

Tear strips allow installers to easily adjust height for various concrete thicknesses
Installs securely by attaching directly to forms and floor decking
Rugged one-piece design withstands impact during everyday construction
Intumescent devices are firestop tested for up to 3 hours in accordance with ASTM E 814 (UL 1479)
Eliminates time and expense of core drilling holes in concrete
Designed specifically for plastic pipes and other non-metallic through penetrants

More Product Details

Brochure

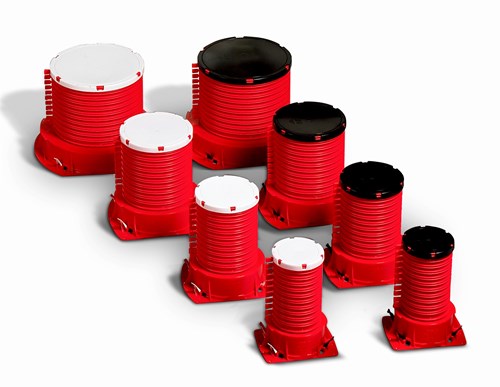

3M™ Fire Barrier Cast-In Devices for Plastic Pipes

Easily adjust the height with only a pliers

Simply a Better Way to Firestop
Firestopping through concrete used to mean three things: pouring the concrete, core drilling holes, and firestopping later. 3M™ Fire Barrier Cast-In Devices for Plastic Pipes eliminate the time and expense of firestopping non-metallic penetrants using extra materials such as pipe devices, intumescent strips and caulk. This allows for a more secure, permanent firestop installation (PDF, 560 Kb) before concrete is poured. A series of built-in tear strips makes for fast, easy height adjustment in ½ inch increments: using only a pliers, installers can quickly adjust the height of the device from its maximum 8 inches (203.2 mm) to as low as 2-1/2 inches (57.2 mm). The device secures easily to floor decking, and its one-piece design withstands the everyday impact and wear of the construction site. Its white cap, easily visible after pour, signifies it as a pass-through device for non-metallic penetrants.

Recommended Applications

Firestopping of plastic pipes — ccPVC, PVC, ENT, CPVC, FRPP, PVDF, ccABS, ABS, rigid non-metallic, PEX
For concrete thicknesses from 2-1/2 inches (203.2 mm) to 8 inches (57.2 mm) or higher in conjunction with 3M™ Fire Barrier Cast-In Devices Height Adaptor
In conjunction with 3M™ Fire Barrier Cast-In Device Metal Deck Adaptor for attaching to fluted decks

3M™ Fire Barrier Cast-In Devices for Plastic Pipes eliminate the time and expense of firestopping non-metallic penetrants using extra materials such as pipe devices, intumescent strips and caulk.

Fully Tested and Approved
3M™ Fire Barrier Cast-In Devices for Plastic Pipes are firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479). They are UL Classified for 2- and 3-hour fire (F) rating, and 1- and 3-hour temperature (T) rating. They also meet UL Water Leakage Test, W Rating - Class 1 requirements for systems tested and listed in accordance with ANSI/UL 1479 (see system details).

Reliable and Affordable Fire Protection
Effective and easy to install, 3M™ Fire Barrier Cast-In Devices for Plastic Pipes are part of 3M's family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products.
