Simply a Better Way to Firestop

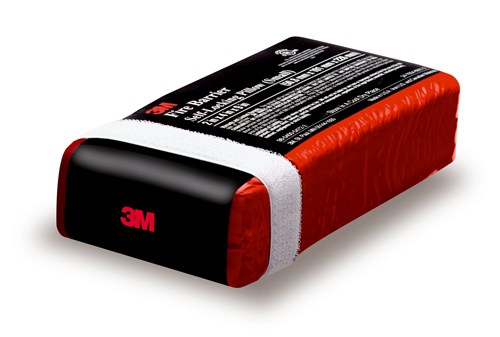

Presenting a simpler solution to the time, cost and material challenges of firestopping medium and large through penetration openings: 3M™ Fire Barrier Self Locking Pillows combine intumescent fire-rated material and a range of sizes with interlocking hook and loop strips that allow installers to easily lock multiple pillows together (PDF, 175 Kb) without tools. Installers can also cut and reseal the pillows in the field. This makes it easier to assemble ideally-sized firestops for specific penetrations in floors and walls, installed to the correct compressions for maximum effectiveness in new construction or retrofit applications. No wire mesh, steel cover plates or other additional support is required. The pillows are fully re-enterable and reusable — the interlocking hook and loop strips can be released by hand, making it easy to reconfigure firestop pillows as additional services are added or relocated. They are firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC-S115 when installed in listed systems.
  Recommended Applications

• Firestopping medium to large openings containing power or communication cables and conduits
• Gypsum wall, concrete or block wall and concrete floors
• Blank openings up to 540 sq. in. (3483 sq. cm)
• 1 or 2 cable racks or trays per penetration
• Conduit bank, inner duct cable and cable racks or tray applications
• Used in conjunction with 3M Moldable Putty+

Reliable and Affordable Fire Protection
Effective and easy to install, 3M™ Fire Barrier Self-Locking Pillows are part of 3M's family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products.
