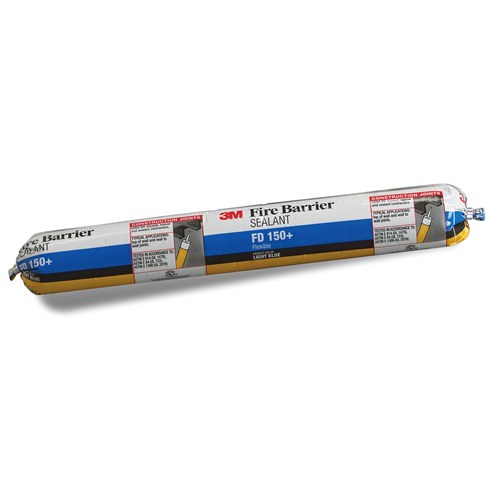

3M™ Fire Barrier Sealant FD 150+, Blue, 20 fl. oz., Sausage, 12 percase

SKU: 7100044834

3M™ Fire Barrier Sealant FD 150+, Blue, 20 fl. oz., Sausage, 12 percase

SKU: 7100044834

$10.86 / Each

Add $199.00 worth of items to your cart to qualify for free shipping

Minimum Order Quantity: 12 Each

QTY:

SHIPPING DIMENSIONS Height: 6.75 Inches Width: 8.50 Inches Length: 16.25 Inches Weight: 24 Lb(s) 1 Oz

Technical Specifications

Firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC S115
Fire resistive joint system tested up to 4 hours in accordance with ASTM E 1966 (UL 2079)
Continuous seal remains pliable and allows for typical pipe movement
Water-based for easy installation, cleanup and disposal
High-solids formula means limited shrinkage
Re-enterable and repairable fire barrier sealant
Multi-viscosity grade offers excellent sealant and caulking properties
Sealant helps minimize noise transfer

More Product Details

Brochure

It is used to firestop metal pipes or cables through concrete or gypsum, and for use in dynamic head-of-wall systems

Tried and Tested Fire Protection
Ready-to-use, 3M™ Fire Barrier Sealant FD 150+ is a latex-based elastomeric sealant. This gun-grade sealant cures when dispensed to form a monolithic flexible firestop seal and, when properly installed, this product provides up to 4-hour fire protection in tested and listed systems. 3M formulated this sealant to help prevent the spread of fire, smoke and noxious gas and firestop joints and through penetrations through floor slabs, walls and other fire-rated building partitions and assemblies. This firestop sealant offers a continuous seal with ± 19% movement capability for construction joints and typical pipe movement and exhibits excellent adhesion to a full range of construction substrates.

Recommended Applications

Construction joints
Piping, all non-combustible and small diameter combustible
Cables

Fire Barrier Features
3M™ Fire Barrier Sealant FD 150+ acts as an acoustic barrier by minimizing noise transfer (STC-Rating of 56 when tested in a STC 56-rated wall assembly). 3M designed this fire barrier sealant to be water-based for easy installation, cleanup and disposal. In addition, the high-solids formula produces limited shrinkage. This halogen-free sealant is sag-resistant and has an excellent caulk rate (applied with conventional caulking equipment). It dries to the touch in 30 — 60 minutes and can be painted. In addition, this sealant has been engineered to be re-enterable and repairable.

3M™ Fire Barrier Sealant FD 150+ is an economical alternative to firestopping applications

Reliable and Affordable Fire Protection
Effective and easy to install, 3M™ Fire Barrier Sealant FD 150+ is part of 3M family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products.

Learn more about 3M™ Fire Barrier Sealant FD 150+ and other fire protection products (PDF, 3.55 Mb)
