Fast Firestopping Foam
Efficient and effective, 3M™ Fire Barrier Rated Foam FIP 1-Step is a two-part urethane, smoke, sound and firestopping foam. This intumescent foam is engineered to expand in the event of a fire. It is firestop tested up to 2 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC S115. When dispensed, this foam cures quickly, reaching full expansion after approximately 2 minutes and expanding up to 5 times its size. This product foams in place without sagging or running and is designed to fill the void between the through penetrant (pipe, cable, etc.) and the wall, creating a firestop seal and restoring the fire rating of the entire wall. 3M formulated this foam to be re-enterable and repairable, remaining pliable after installation for the easy installation of new cables/conduit in existing openings.

Recommended Applications

• Blank openings
• Metal pipe
• Cables
• Cable tray
• Insulated pipe
• Combination penetrations

Sustains a Tight Seal
3M™ Fire Barrier Rated Foam FIP 1-Step offers excellent adhesion and can be installed in wall or floor applications with no backing material, eliminating the need for mineral wool and caulk. This firestop foam bonds to most construction substrates, including but not limited to, concrete, metal, wood, plastic and cable jacketing. This product is paintable with primer. During a fire, this product maintains a tight firestop against smoke and flame and its air leakage is less than 1 CFM/Sq Ft. 3M™ Fire Barrier Rated Foam FIP 1-Step meets the intent of LEED VOC regulations and is <250 g/L VOC contents (less H2O and exempt solvents). In addition, this foam has an STC rating of 57 when tested in a STC 57 rated wall assembly.

View 3M™ Fire Protection Products for Oil & Gas Applications. (PDF, 1.35 Mb)

One-Step Firestop

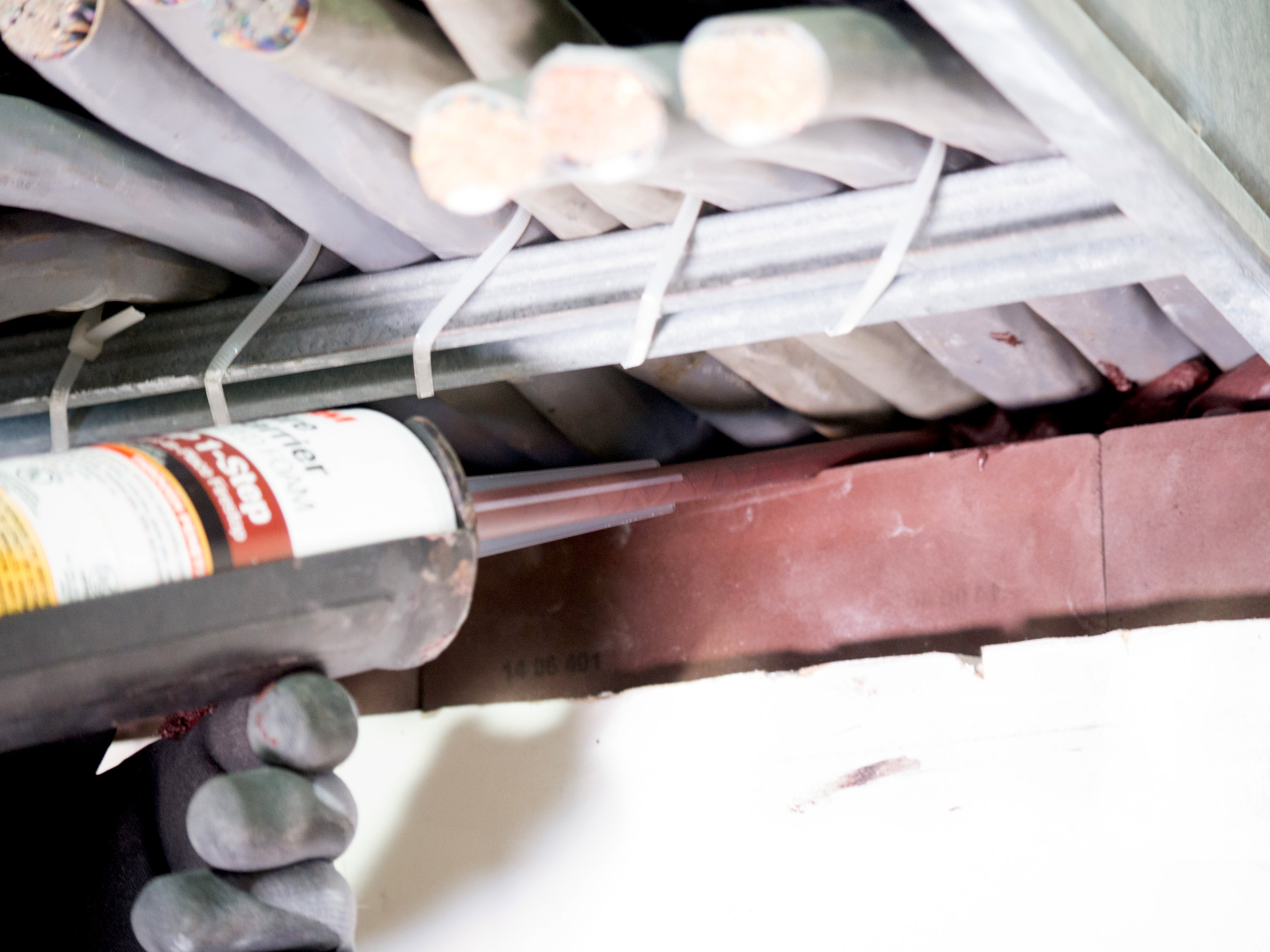

Finish firestop installations quickly with the 3M™ Fire Barrier Rated Foam FIP 1-Step. 3M one-step solution means less product to order, track and haul. This firestop foam is not runny and stays in place, expanding at a controlled and consistent pace to create a strong seal around pipes, cables and conduits. Tackle tricky installations with confidence in just one step, making firestop installations a whole lot easier.

Reliable and Affordable Fire Protection
Effective and easy to install, 3M™ Fire Barrier Rated Foam FIP 1-Step is part of 3M family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products.
