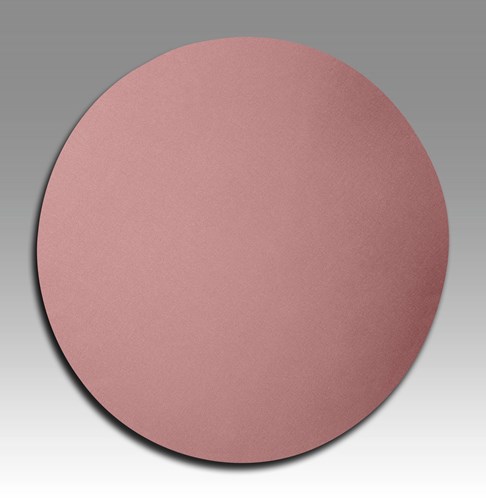

3M™ Diamond Polishing PSA Cloth Disc 656WY, 8 in x NH, 50000 Mesh, 1 per case

SKU: 7010325342

3M™ Diamond Polishing PSA Cloth Disc 656WY, 8 in x NH, 50000 Mesh, 1 per case

SKU: 7010325342

$110.33 / Each

Add $199.00 worth of items to your cart to qualify for free shipping

Sold By: Each

Estimated Lead Time (subject to change): Call For Lead Time

QTY:

SHIPPING DIMENSIONS Height: 9.00 Inches Width: 0.13 Inches Length: 9.00 Inches Weight: 0 Lb(s) 3 Oz

Technical Specifications

Micron-graded diamond mineral for use on hard-to-grind materials
Flexible, J-weight cloth backing is waterproof for use with coolants
Pressure sensitive adhesive backing makes tool attachment easyc
Available in grades 1800, 3000, 8000 and 50,000 mesh (9µ, 6µ, 3µ and 0.5µ)

Made To Order

More Product Details

Brochure

Brochure 2

Tough-Cutting, Uniform Finish
Designed for grinding and polishing, 3M™ Diamond Polishing PSA Cloth Disc 656WY can tackle tough materials like ceramics, tungsten and chrome carbides and composites. In 3,000, 8,000 and 50,000 mesh grades, a wide range of surface finishes are achievable on various different hard to grind substrates and applications. The flexible, J-weight cloth provides a durable, consistent backing for polishing on and around contoured surfaces.

3M ID	Converted Forms	Backing	Grade Availability
652WY*	Belts, Rolls, Discs, Sheets	J wt cloth Standard	50,000, 8000, 3000 (0.5, 3, 6µ)
656WY	Discs, Sheets	PSA, QRS	50,000, 8000, 3000, 1800 (0.5, 3, 6, 9µ)
662WY*	Belts	Heavyweight Cloth (YF Wt)	1800 (9µ)

*Products marked with an asterisk(*) can be used as alternatives for achieving a final finish for customers without superfinishing equipment.

Use Wet for Finer Finish and Longer Abrasive Life
Achieve optimum results when you use this diamond abrasive disc with a coolant. Coolant is a desirable component of diamond polishing, since it efficiently cools both the work and the abrasive. Additionally, coolant will remove swarf and prolong abrasive life.

Learn More about 3M™ Superabrasives (PDF, 1.95 Mb)

Press On, Peel Off
3M designed this diamond abrasive disc with a pressure sensitive adhesive (PSA) to make tool attachment swift and easy. The PSA backing adheres like a sticker, so operators can secure the abrasive to a tool by applying light pressure. Swift tool attachment helps enhance productivity and throughput.

Find More 3M™ Abrasive Accessories (PDF, 4.29 Mb)

Applications
The 3M™ Diamond Polishing
