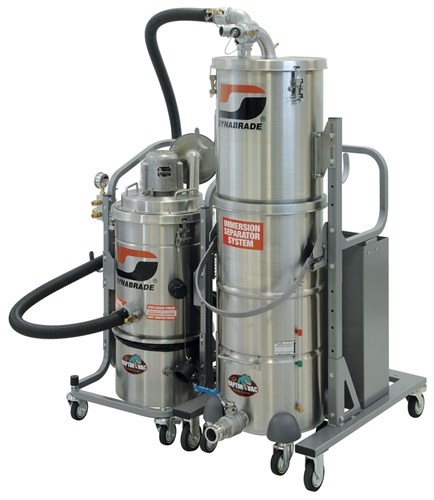

Raptor Vac Electric Portable Vacuum System 22 lbs. (10 kg) into 7.9 Gal, 20 A, 120 V 50/60 Hz, Division I, Immersion Separator

SKU: 61461

Raptor Vac Electric Portable Vacuum System 22 lbs. (10 kg) into 7.9 Gal, 20 A, 120 V 50/60 Hz, Division I, Immersion Separator

SKU: 61461

QTY:

This product does not qualify for free shipping.

This product does not qualify for free shipping.

  • Electric Portable Vacuum with Division 1 Immersion Separator for Use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 22 lbs. (10 kg) of dust. Legally certified as explosion-proof and dust ignition-proof. Utilized for the recovery of metallic, conductive and explosive dusts, into a liquid immersion bath such as water, paraffin oil or mineral oil. Renders hazardous dusts inert. Recovery capacity of 22 lbs (10 kg) of dust into 7.9 gallons (30 liters) of neutralizing liquid. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Filter is located downstream of the motor.
  • For safe recovery of combustible-conductive dusts. Renders hazardous dusts inert using mineral oil as neutralizing liquid.Stainless steel recovery tank (SAE 304). Easy one-click detaching and connecting of tank. Unit is static-dissipating and conductive (Includes 96608 Conductive Cleaning Kit). Aerosol leak tested for quality assurance. Equipped with easy-glide cart and tool basket. Dynabrade recommends the use of mineral oil with viscosity of 10.5 cSt. Connect two tools simultaneously.
  • Vacuum for use in:
    Group D:
    atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode
    Group E:
    atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys
    Group F:
    atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust
    Group G:
    atmospheres, containing wood and plastic dusts
  • Included:
    - Two 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines
    - Y-Connector
    - Two Composite Couplers
    - Two Vacuum Hose Swivel Adapters
    - 3/4" x 25' (19 mm x 7.6 m) Conductive Air Line Supply
Need Help? Contact us.

Specifications

Certification
CSA
Collected Material
Metallic Alloys
Filter Rating
HEPA14
Filtration Media
Dry
hp
1000.0
Location
Hazardous Location
Max. Recovery Capacity [pounds]
22.0
Powered By
Electric Motor
Water Static Lift
89 / 175 / 172

RELATED PRODUCTS

1-1/4" Conductive Inlet
SKU: 31964
Add to Cart to See Price
Dynabrade 2" Dia. 7 Degree Offset Disc Sander
2" (51 mm) Dia. 7 Degree Offset Disc Sander .4hp, 25,000 RPM, Gearless, Extended…
SKU: 48500
Add to Cart to See Price
Free Shipping

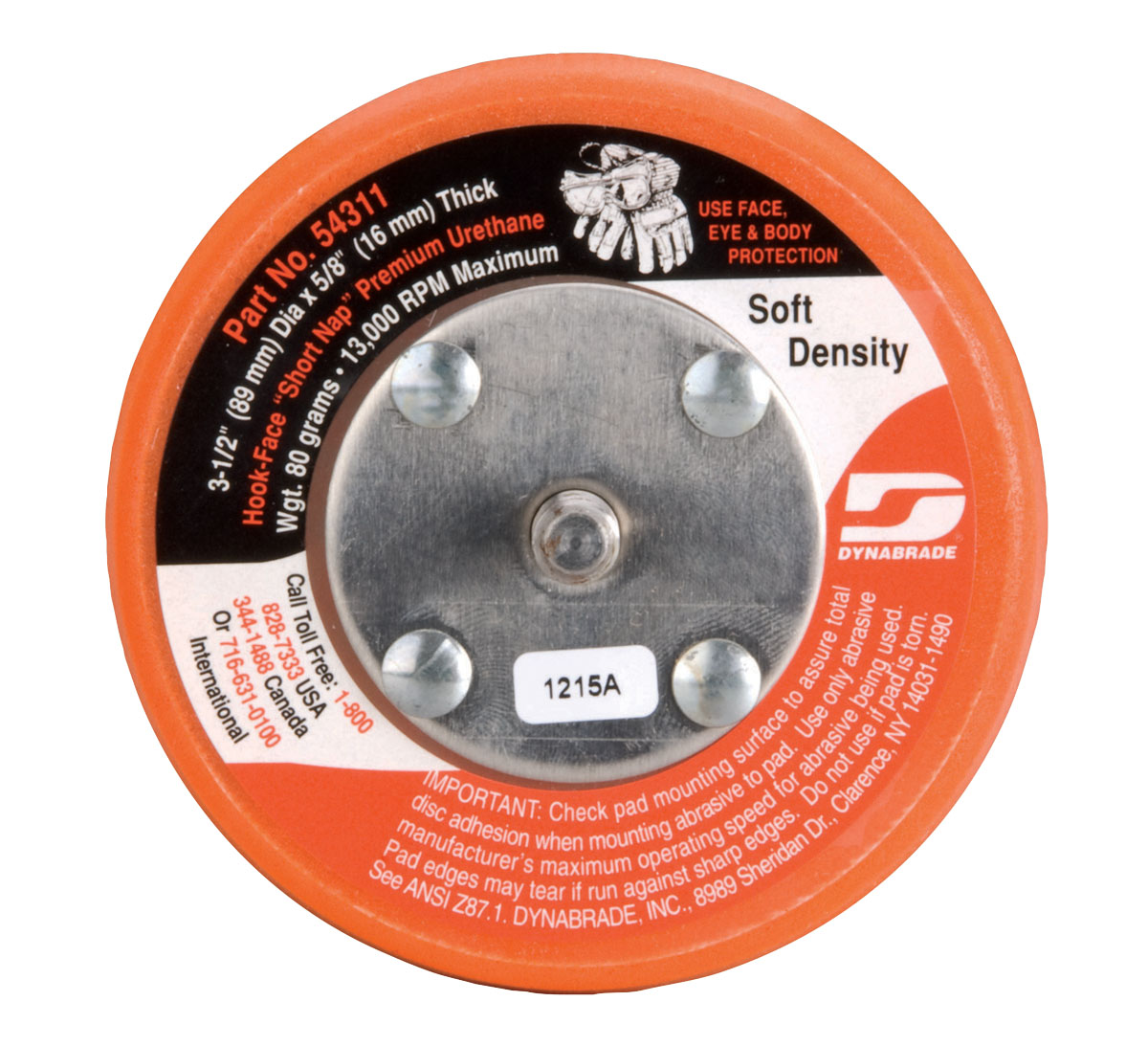

3-1/2" (89 mm) Dia. Non-Vacuum Disc Pad, Hook-Face, Short Nap
