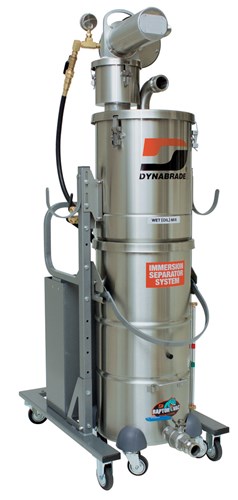

Buy In BulkRaptor Vac Air Powered Portable Vacuum System 22 lbs. (10 kg) into 7.9 Gal, Division I, Immersion Separator
SKU: 61463
Raptor Vac Air Powered Portable Vacuum System 22 lbs. (10 kg) into 7.9 Gal, Division I, Immersion Separator
SKU: 61463
QTY:
This product does not qualify for free shipping.
This product does not qualify for free shipping.
- Pneumatic Portable Vacuum with Division 1 Immersion Separator for use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 22 lbs. (10 kg) of dust. Legally certified as explosion-proof and dust ignition-proof. Utilized for the recovery of metallic, conductive and explosive dusts, into a liquid immersion bath such as water, paraffin oil or mineral oil. Renders hazardous dust inert. Recovery capacity of 1.3 gallons (5 liters) of dust into 7.9 gallons (30 liters) of neutralizing liquid. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Filter is located downstream of the motor.
- Stainless steel recovery tank (SAE 304). Easy one-click detaching and connecting of tank. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart and tool basket. Dynabrade recommends the use of Mineral Oil with viscosity of 10.5 cSt. 96608 Conductive Cleaning Kit available separately
- Vacuum for use in:
Group A:
atmospheres, containing acetylene
Group B:
atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air
Group C:
atmospheres containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air
Group D:
atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode
Group E:
atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys
Group F:
atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust
Group G:
atmospheres, containing wood and plastic dusts - Included:
- Two 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines
- Y-Connector
- Two Composite Couplers
- Two Vacuum Hose Swivel Adapters
- 3/4" x 25' (19 mm x 7.6 m) Conductive Air Line Supply
Specifications
Certification
CE
Collected Material
Metallic Alloys
Filter Rating
HEPA14
Filtration Media
Dry
Location
Hazardous Location
Max. Recovery Capacity [pounds]
22.0
Powered By
Pneumatic Venturi
Water Static Lift
180 / 457 / 448
