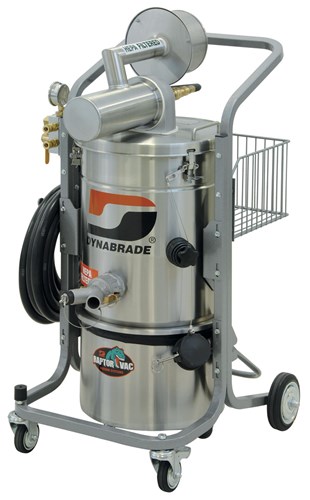

Buy In BulkRaptor Vac Air Powered Portable Vacuum System 5 lbs. (2.27 kg) into 6.25 Gal (24 L), Division 1
SKU: 61465
Raptor Vac Air Powered Portable Vacuum System 5 lbs. (2.27 kg) into 6.25 Gal (24 L), Division 1
SKU: 61465
QTY:
This product does not qualify for free shipping.
This product does not qualify for free shipping.
- Pneumatic Portable Vacuum For use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 5 lbs. (2.27 kg) of dust. Designed for dry-only source capture, where fine dust must be recovered. Legally certified as explosion-proof and dust ignition-proof. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Filter is located downstream of the motor. Manual Filter Shaker (MFS) system.
- Stainless steel recovery tank (SAE 304). Easy one-click detaching and connecting of tank. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart and tool basket. Dynabrade recommends the use of Mineral Oil with viscosity of 10.5 cSt. 96608 Conductive Cleaning Kit available separately
- Vacuum for use in:
Group A:
atmospheres, containing acetylene
Group B:
atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air
Group C:
atmospheres containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air
Group D:
atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode
Group E:
atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys
Group F:
atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust
Group G:
atmospheres, containing wood and plastic dusts - Included:
- Two 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines
- Y-Connector
- Two Composite Couplers
- Two Vacuum Hose Swivel Adapters
- Conductive Poly Liner
- 3/4" x 25' (19 mm x 7.6 m) Conductive Air Line Supply
Specifications
Certification
CE
Collected Material
Metallic Alloys
Filter Rating
HEPA14
Filtration Media
Dry
Location
Hazardous Location
Powered By
Pneumatic Venturi
Water Static Lift
180 / 457 / 448
RELATED PRODUCTS
4" (102 mm) Dia. Straight-Line Type 1 Extension Wheel Grinder
SKU: 52379
Add to Cart to See Price
Free Shipping

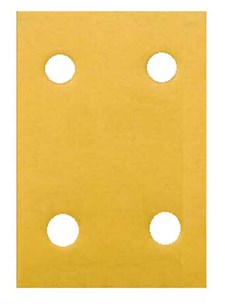

75 mm W x 110 mm L 180 Grit A/O Vacuum Hook-Face DynaCut 4 Hole Sheet
