36" W x 60" L (914 mm W x 1,524 mm L) 230 V Down Exhaust Metal Capture Downdraft Table

SKU: 64400

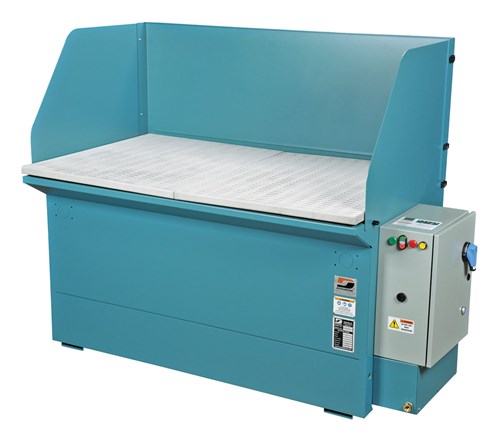

230 V Down Exhaust Dynabrade Metal Capture Downdraft Table #64400

36" W x 60" L (914 mm W x 1,524 mm L) 230 V Down Exhaust Metal Capture Downdraft Table

SKU: 64400

QTY:

This product does not qualify for free shipping.

Meets these NFPA requirements:
- Interlock pneumatic valve with blower and time-delay
- Tools operate only when downdraft table is running
- Class II, Group E explosion-proof motor
- Aluminum top for non-spark work surface
- Non-spark aluminum blower on collectors clean-air side
- Automatic water level control
- Vented sump (main tank)
- Low voltage control
- Lockable fused power disconnect
230 V
Down exhaust
UL certification

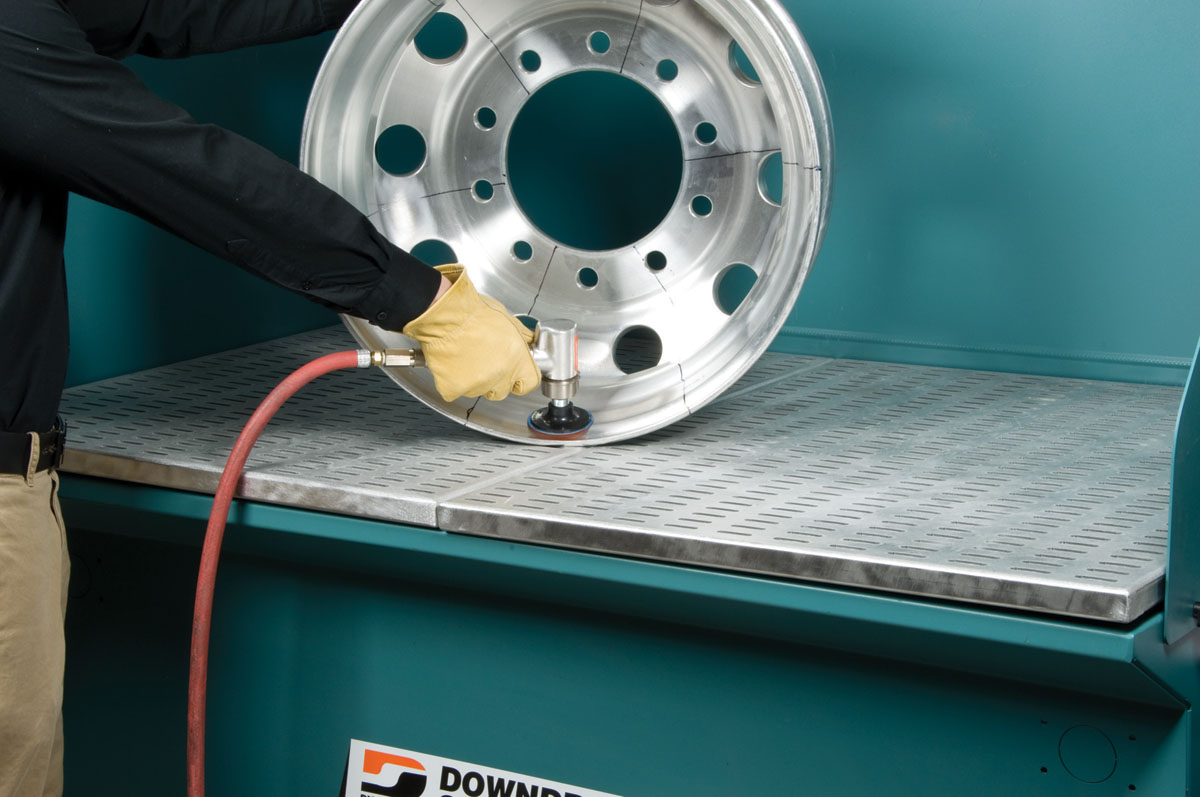

Ideal for capturing aluminum and titanium dust. Working area of 36" wide x 60" long accommodates large work pieces. Includes casters for easy maneuvering; casters also lock securely into place.
Choice of models that direct exhaust down, up, or to the side. Overload protection / fused disconnect for safety.
Sturdy 12-gauge construction. Includes shields for both sides and back of table.
Workpiece capacity / load rating of 2,000 pounds
1800.0 vacuum suction
42 gallon capacity
1,800 CFM at 4" static pressure
Easy system maintenance. No paper filters to replace!

Product Resources

Dynabrade Metal Capture Downdraft Table Manual

Need Help? Contact us.

The Dynabrade Metal Capture Downdraft Table is ideal for capturing aluminum and titanium dust. Its large dimensions can accommodate large work pieces. Casters lock into place and allow easy maneuvering.
