Buy In BulkARC™ Series 40 KA (BTP 517) Arc Flash Curtain Cube
SKU: ARCBKT-40KA-CUBE
ARC™ Series 40 KA (BTP 517) Arc Flash Curtain Cube
SKU: ARCBKT-40KA-CUBE
$7,166.25
/ Each
Sold By: Each
Estimated Lead Time (subject to change): Made To Order
QTY:
SHIPPING DIMENSIONS
Height: 14.00 Inches
Width: 54.00 Inches
Length: 77.00 Inches
Weight: 140 Lb(s) 0 Oz
- Designed to protect workers in a variety of work environments such as underground vaults, confined spaces, and anyplace electrical equipment is located.
- Diverts energy away from worker.
- Anchoring is recommended for holding the structure in place to contain or divert arc energy.
- Meets ASTM F2676.
- 40kA(BTP 517)
- Panel dimensions are 4’x5′
- Our framework dimensions are
- DOES NOT Provide insulation from shock.

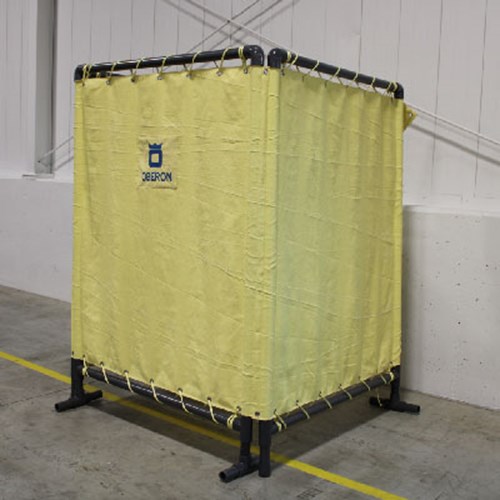

ARC™ Series 40 KA (BTP 517) Arc Flash Curtain Cube
- Portable cube is made from a durable Aramid fabric that is tested and designed to divert energy away from the worker while performing every day electrical tasks. It can also serve as an additional barrier to safeguard workers that are in close proximity to electrical equipment.

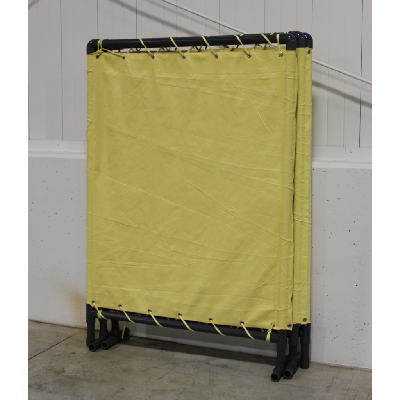

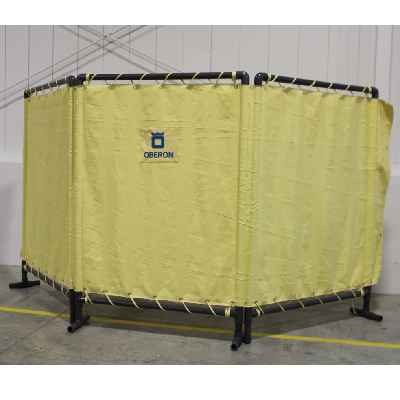

- The cube can be moved from site to site and can be deployed on multiple configurations.
- The 4.5′ x 6.5′ cube framework is made from a durable Schedule 80 PVC frame and is comprised of 3 Aramid panels measuring 4’x5′. the panels are further reinforced by the use of Kevlar® rope for added strength and stability.
- Anchoring is recommended for holding the structure in place to contain or divert arc energy.
- Meets ASTM F2676 and ASTM F3272 test standards and is rated for a maximum arc current of 40 kA (BTP 517).
- Made in the USA
