When using a Duo-Pak (DP) size adhesive, rely on 3M dispensing equipment for convenient and accurate metering, mixing and dispensing.


Used primarily for high strength bonding in electronics manufacturing

High Peel and Shear Strength Maintains Lasting Bond at High and Low Temperatures

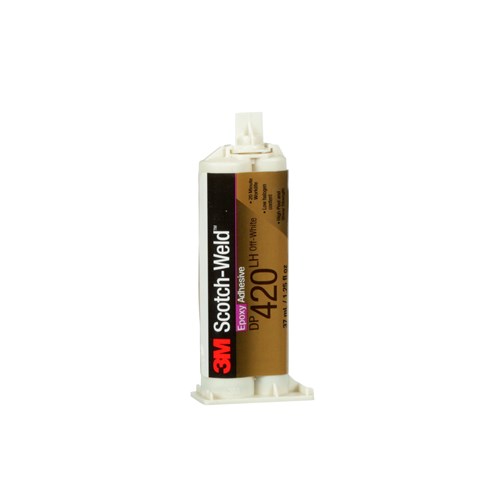

3M™ Scotch-Weld™ Epoxy Adhesive DP420LH maintains bond strength at high and low temperatures and can withstand paint bake operations up to 400°F for 60 minutes. It works well in the electronics industry on a variety of substrates such as anodized aluminum, stainless steel composites and plastics, and is an excellent indoor bonding agent for joining, gluing, potting, panel bonding, and structural bonding. It is classified as low halogen as defined by the Electrotechnical Commission (IEC) 61249-2-21 Standard.

Recommended Applications

• Small joint assembly
• Heavy-duty mounting assembly
• Metalworking
• Carbon fiber epoxy bonding

20 Minute Work Life Provides Time for Positioning and Adjustment
3M™ Scotch-Weld™ Epoxy Adhesive DP420LH dispenses as a medium viscosity adhesive for easy, controlled application. The adhesive reaches handling strength in approximately two hours and is fully cured in 24 hours (at 72°F/22°C.) The mix ratio is 2:1 and provides a 20 minute work life, providing time to adjust for desired fit prior to curing. This adhesive is available in a variety of package sizes and can be dispensed in several ways to meet the demands of the user and the job.

Toughened for Impact and Fatigue Resistance
3M™ Scotch-Weld™ Epoxy Adhesive DP420LH is appropriate for applications that will face tough environmental challenges. Formulated to provide strong adhesion for the long-term, this resilient epoxy is another way 3M meets and exceeds the demands of even the toughest applications.

What are Epoxy Adhesives?
Epoxy adhesives are part of the class of adhesives called "structural adhesives," which also includes polyurethane, acrylic, cyanoacrylate and others. Epoxies are formulated as liquid reactive polymers that undergo a chemical reaction when mixed and then cure to form a solid plastic material. Once the two parts are mixed in their specified ratio, they begin the curing process and offer a limited work life (open time) where the adhesive can be applied and the two surfaces positioned as needed. This work life lasts anywhere from a few minutes to several hours. These structural adhesives provide high shear and peel strengths, depending on the formula, and better heat and chemical resistance than other common adhesives. In general, epoxy adhesives have the highest overall strength and offer the best performance and most resistance to high temperatures, solvents and outdoor weathering.

Epoxy adhesives are widely used in building and home constructio
