Differential Tape Features Permanent Bond on One Side/ Removable on Other

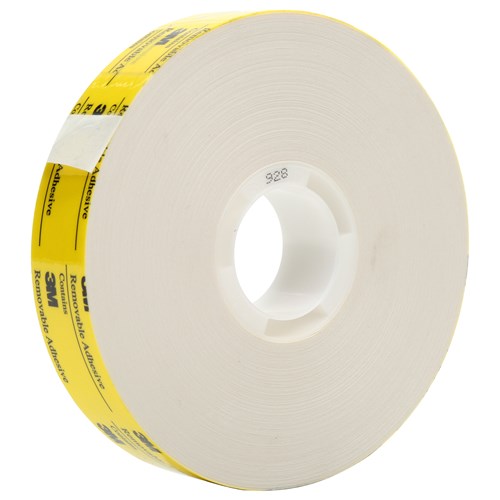

Scotch® ATG Repositionable Double Coated Tissue Tape 928 (PDF, 18.39 Kb) features 3M™ Adhesive 400 and 3M™ Adhesive 1000. The 3M™ Adhesive 1000 is a low-tack, repositionable acrylic pressure sensitive adhesive that allows for removal and repositioning of many papers, plastics, foams and foils without residue or delamination. 3M™ Adhesive 400 is a medium-firm pressure sensitive acrylic adhesive system with excellent balance of good initial adhesion (quick stick) and good shear holding power. The formulation gives 3M™ Adhesive 400 a consistently strong bond across a range of temperatures, up to 180°F/82°C. Reverse wound on a unique 1 inch core designed for use with a Scotch® ATG Applicator.

Recommended Applications

• Reclosable bags or envelopes
• Holding paperwork and folders
• Attaching temporary bulletins and work instructions to production and assembly processes
• Attachment of temporary labels
• Temporary hold for protective packaging materials, such as foam or cardboard, used for shipment of manufactured goods

Understanding the Scotch® ATG System
Scotch® ATG system has proven to be the go-to adhesive solution since the early 1970s. For light and heavy industrial applications, the Scotch® ATG Adhesive Applicators are convenient, reliable, versatile tools capable of attaching a wide range of materials. With no cure time, the adhesive instantly bonds long, large and small surfaces. As a portable, hand-held solution, it can apply tape to any shape or form, even from an uncomfortable position, while allowing your free hand to hold the part.

With Scotch® ATG Applicators, a touch of the finger triggers a quick, controlled application of Scotch® ATG Transfer Tape at the same time as the liner rewinds into the applicator. There is no mess and no cleanup. 3M advanced acrylic adhesive bonds on contact and is formulated with a choice of properties including high temperature resistance, acid free, general purpose and high initial adhesion.

The ATG system is a cost effective and more productive replacement to many double-sided tapes, tape applicators, as well as adhesive dots, staples and liquid adhesives. This applicator allows the ATG liner to rewind into the applicator as the adhesive is applied for hassle-free operation that eliminates messes and clean-up.

Click here for more information on 3M Design Solutions. (PDF, 45.87 Mb)
