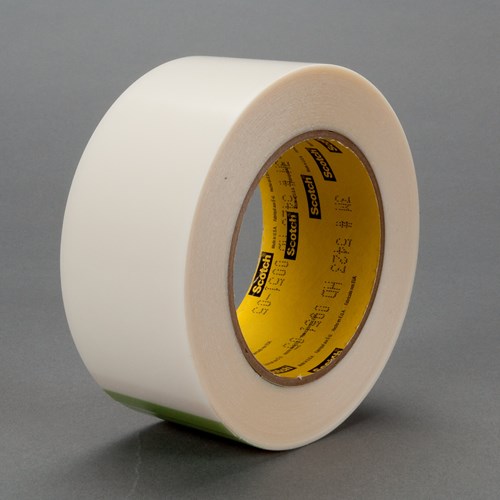

3M™ UHMW Film Tape 5423, Transparent, 6 in x 18 yd, 12 mil, 2 rolls per case

SKU: 7100030183

3M™ UHMW Film Tape 5423, Transparent, 6 in x 18 yd, 12 mil, 2 rolls per case

SKU: 7100030183

$676.14 / Roll

Adding this item to your cart will qualify your order for free shipping

Minimum Order Quantity: 4 Roll

Estimated Lead Time (subject to change): 11 Days

QTY:

SHIPPING DIMENSIONS Height: 8.40 Inches Width: 8.40 Inches Length: 14.60 Inches Weight: 4 Lb(s) 14 Oz

Technical Specifications

Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
Can help reduce squeaks, rattles and other noises that occur with movement
Used in applications where lubrication is not possible because of contamination
Translucent, abrasion resistant backing helps protect surfaces from wear
Low coefficient of friction for “slip plane” effect between surfaces
Rubber adhesive provides good initial tack for immediate bonding to material surface

Est. Lead Time: 11 Working Days

More Product Details

Brochure

Data Sheet

3M™ UHMW-PE Film Tape 5423 is often used in general industrial applications to help control squeaks and rattles due to vibration or wear of metal and plastic materials.

Abrasion resistant to protect chutes, guide rails, and containers from wear

An Effective Solution for Many Noise and Vibration Problems
3M™ UHMW-PE Film Tape 5423 (PDF, 166.41 Kb) is often used in general industrial applications to help control squeaks and rattles due to vibration or wear of metal and plastic materials. This UHMW-PE (ultra-high molecular weight polyethylene) film tape provides good chemical resistance and excellent abrasion resistance that helps ensure a long wear life. 3M™ UHMW-PE Film Tape 5423 is mounted on a liner, making it easy to die-cut to meet the demands of specific applications. It is ideal for applications requiring a low coefficient of friction and the movement of parts and/or materials. This slick surface tape is primarily used in aerospace, automotive, printing and MRO industries.

Recommended Applications

Flat conveyor guide rails and chutes
Spray booth liners
Tank and bin liners
Drawer and cabinet slides
Protecting aluminum sheets on stretch forming presses

The Science Behind 3M Tape
The effectiveness of 3M™ UHMW-PE Film Tape 5423 lies in its Ultra-High Molecular Weight polyethylene (UHMW-PE) backing. UHMW-PE is a thermoplastic that has a unique combination of properties, such as exceptional hardness and low surface energy. The ultra-high molecular weight of this tape significantly reduces friction to create an effective solution for anti-stick and easy-release requirements. The abrasion resistance of UHMW-PE is greater than PTFE and increases as the molecular weight increases.

The extraordinary durability and versatility of UHMW-PE is used by designers and engineers in many industries worldwide. UHMW-PE based products offer a host of exceptional attributes that include high abrasion resistance, low coefficient of friction and one of the highest impact strength ratings of any thermoplastic. These attributes make them ideal for tough impact wear or sliding applications. The low coefficient of friction characteristic is surpassed only by PTFE; however, UHMW-PE tape has superior abrasion resistance. 3M exceptional science and engineering of products provide long-lasting performance and successful solutions.
